Managing leaks (and everything else) in an industrial compressed air system
Managing a compressed air system is just one of many responsibilities for most industrial facility maintenance teams. Along with the boilers, chillers, cooling towers and wastewater treatment systems, compressed air systems are another item essential to operations, requiring significant capital and maintenance investments, and commitment of resources to ensure trouble-free operation.
On top of simply keeping the compressed air system running reliably, there is increasing pressure to reduce and manage demand while making the system more efficient. Compressed air demand and efficiency discussions nearly always include the topic of leaks.
Identification and remediation of compressed air system leaks should be an ongoing focus in any production facility that uses compressed air. It’s often asserted that as much as 50% of compressed air generated is wasted. Of this wasted 50%, as much as 33% is attributed directly to leaks, with another eight percent wasted due to elevating the system pressure to compensate for leaks.
Leaks and inappropriate uses of compressed air have real and significant impacts. If an industrial user has 200 HP online (approximately 1,000 acfm capacity, with actual cubic feet per minute being a measure of the volume of gas and air flowing in a system independent of its density.), the leaks and inappropriate uses of compressed air consume a significant quantity of electrical power, needlessly add to the cost of electrical power for the plant and contribute to carbon emissions.
Leaks and inappropriate uses of compressed air are discussed jointly in this article because the leak identification and remediation process (leak audit) nearly always result in the identification of inappropriate uses of compressed air, yielding even greater opportunities to realize cost and energy consumption reductions.
Air audits
The leak audit process is not complicated, but the sheer size of a production facility can make the task seem daunting. By segmenting a facility so that each part is included in a leak identification/remediation maintenance work order regularly, the audit process does not become overly burdensome.
Leak detection and remediation is also not a one-time or every five-year kind of event. In a well-maintained compressed air system, leak detection and remediation are continuing efforts. One approach to managing leaks is to segment the plant into 10-12 relatively equal areas, based on the distribution of production equipment using pneumatic power. Assign one segment per month for a leak audit and audit the entire plant every year.
It is recommended that the individual performing the leak audit utilize an ultrasonic leak detector. The audible frequency range of hearing for the human ear is 20 Hz to 17kHz. Ultrasonic sound begins at 20kHz. The suggested setting of an ultrasonic leak detector being used for compressed gas leaks is 40 kHz., so the frequency range of most leaks is higher than what can be heard by the human ear. Many users find that most leaks are small, and only located by using an ultrasonic leak detector.
Document, document, document

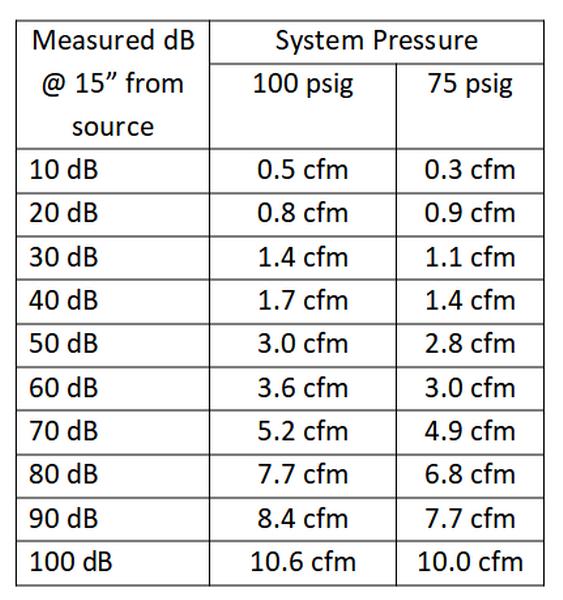

A best-practice is to document each leak when it is identified. Many ultrasonic leak detectors include cameras so that the leak can be photographed and associated with its intensity (dB) while allowing the user to include a description such as the location in the plant or a specific piece of production equipment. Using this technology, downloading the leak audit information into a useable report is very easy.
Along with documenting the leak information, attaching a two-part tag to the leak makes locating the leak for repair easy for the maintenance team. Using a two-part tag allows one part to be attached to a work order for the purposes of tracking and confirming repair status.
Associating leak intensity and the estimated power cost of the leak, allows the maintenance team to determine if a leak is worth fixing. For example, the packing gland and seat in a valve are found to be leaking, but the leak cannot be repaired without replacing the valve. The cost of the valve, plus the labor associated with the repair, could cause the repair to be considered financially unwise.
Very often, particularly with equipment that has pneumatically operated moving parts, leaks are found where compression fittings and ferrules compress tubing. The repeated motion at the fitting, along with chemical action from the carried over lubricant, causes the tubing to fail. Often a pattern of failure is found (time, location, component) that allows for predictive repair – eliminating the potential for leak as part of a routine maintenance procedure.
Finding hidden issues
An added benefit of a thorough leak audit is that the detailed inspection of the compressed air system will typically uncover other issues with the compressed air system. Often, point of use issues such as leaking or failed filter-lubricator-regulators (FRLs) and hose reels are identified. Hose barbs, secured with worm gear clamps, will often cause hose to wear from the inside out, creating significant leaks at the joint.
Other cost-effective improvements are unearthed during a leak audit. A common example is replacement of V-notch valves or timer valves with no-loss drains for condensate removal.
Often, improvised production solutions involve the use of compressed air to assist with product conveying, address a sticking issue, or provide cooling. These improvisations will register as large leaks on the ultrasonic leak detector. And, to a degree, they are leaks. These improvised solutions addressed a manufacturing issue that allowed production to continue, and in the short term, do no harm. However, properly resolving the production issue (use low pressure blower for cooling) or correctly applying compressed air (engineered nozzle or air knife) can provide significant energy savings as compared to an unregulated, open blow nozzle.
Eliminating leaks & demand
Looking at each leak or inappropriate use of compressed air individually can help with the ROI and economic justification of a repair or upgrade. Collectively, however, the demand created by leaks and inappropriate uses can have a significant impact on the total cost of ownership associated with the compressed air system.
What if, by reducing the leak load and addressing inappropriate uses of compressed air, a compressor could be taken off-line? Not only are the power savings significant, but reductions in maintenance costs may be realized. Perhaps, by reducing demand, the plant can enjoy the benefit of back-up compressors without the capital investment associated with purchasing equipment. Possibly, an expected compressor purchase to meet increased demand can be deferred or avoided.
Without a doubt, reducing demand is a positive step for every production facility. An unintended and often unexpected result is that system pressure rises because demand is reduced as the supply side of the compressed air system is better able to meet demand. An increase in system pressure typically results in an increase in usage in unregulated users, off-setting some of the potential savings associated with leak remediation.
Maintaining plant pressure at the lowest acceptable pressure is the best way to manage demand. Controlled storage, a combination of appropriately sized dry storage and an intermediate (flow) controller provides the means to maintain plant pressure at its lowest acceptable point, maximize the benefits associated with leak remediation and optimize the operation of the compressed air system.
Develop a plan, act now
At the end of the day, a leak identification and remediation program provides many benefits to a user and should be implemented. To realize the full potential of a leak identification and remediation program, it should be part of an overall compressed air system management initiative. Combining compressor sequencing, controlled storage, and addressing inappropriate uses of compressed air will provide the optimum operating conditions while minimizing energy consumption.
Collectively, these recommendations may seem overwhelming. For a production facility maintenance or engineering manager, tasked with many other initiatives, the compressed air system may be relegated to a lower priority. It doesn’t have to be that way.
Contact a qualified industrial compressed air solutions provider. Allow an expert to develop the plan, recommend equipment and define the value proposition that will be needed to persuade leadership to make the investments needed. In fact, leak audits, and in some cases, repairs, are part of maintenance programs offered by many distributors.
Don’t delay – act now. Every day that passes represents unrealized and unrecoverable savings.
